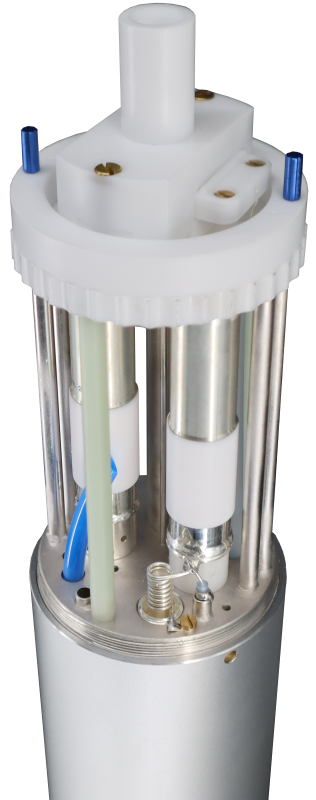

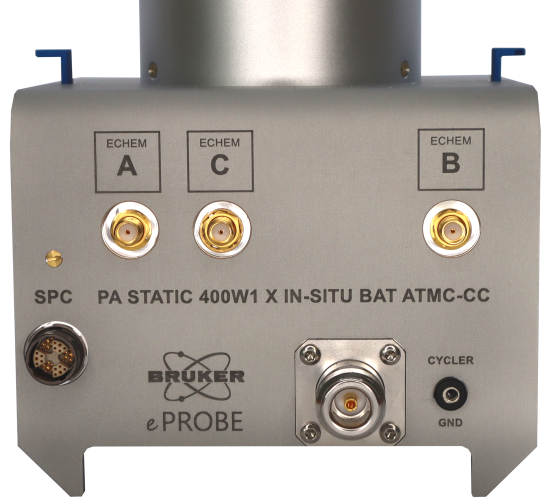

STATIC—X COIN CELL IN SITU NMR WB PROBES
Single-channel static in situ/operando solid-state NMR probe for the analysis of coin cells and small pouch cells
- Wide-bore
- Fields: 200 to 400 MHz (other fields to be discussed)
- X-channel: 13C to 31P (6Li and other nuclei to be discussed)
- Automatic tune/match integrated
- Suitable for all NMR systems

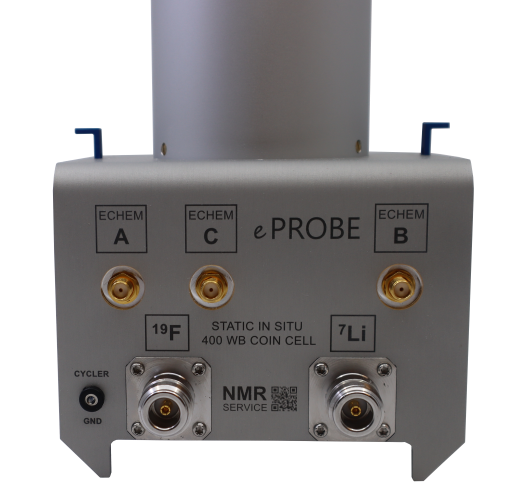

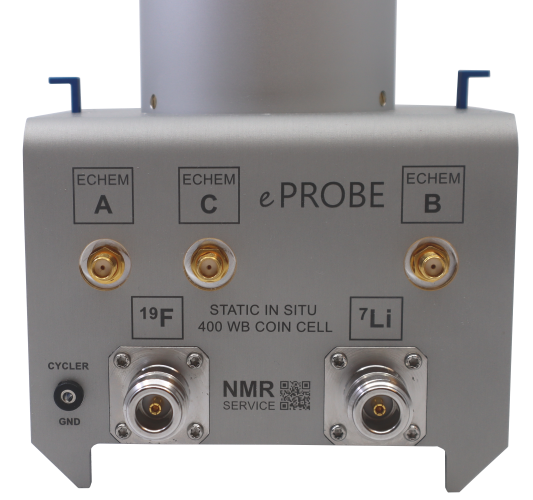

- Option: two-channel version with fixed frequencies, e.g. 1H and 7Li
- Option: automatic tune/match for two-channel version via eATM Robot
Electrochemistry/battery features and options

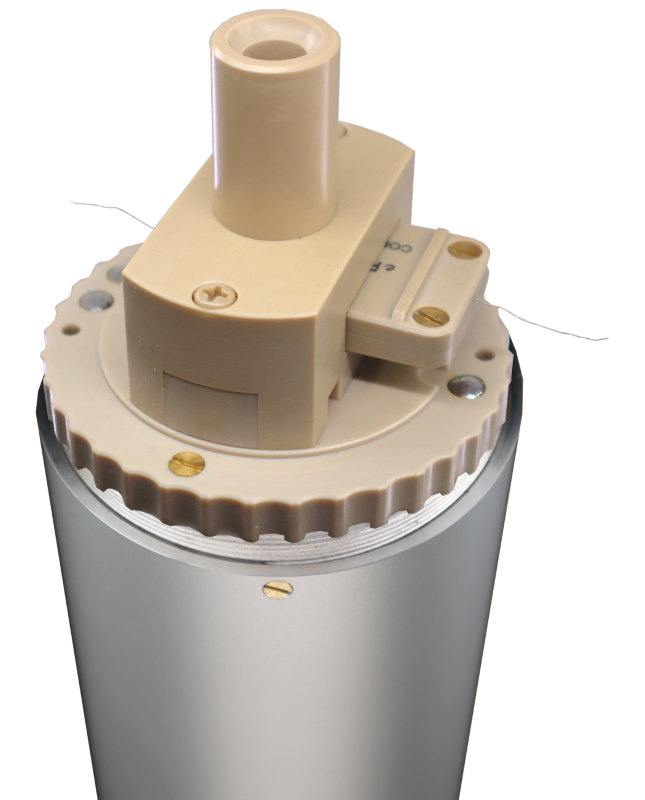

- Suitable for coin cells (up to size CR2032)
- Suitable for pouch cells (LxWxH up to 26x24x7 mm)

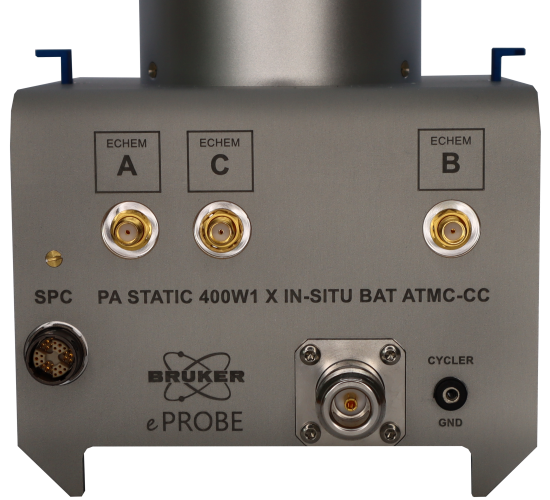

- Three electrochemistry ports (option: four ports)

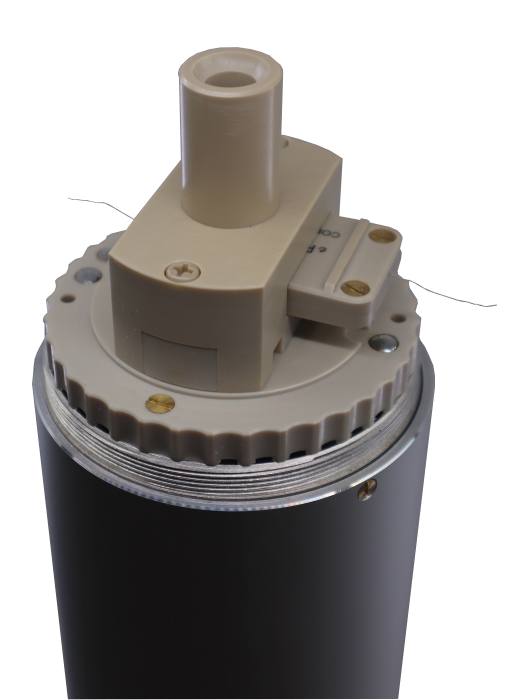

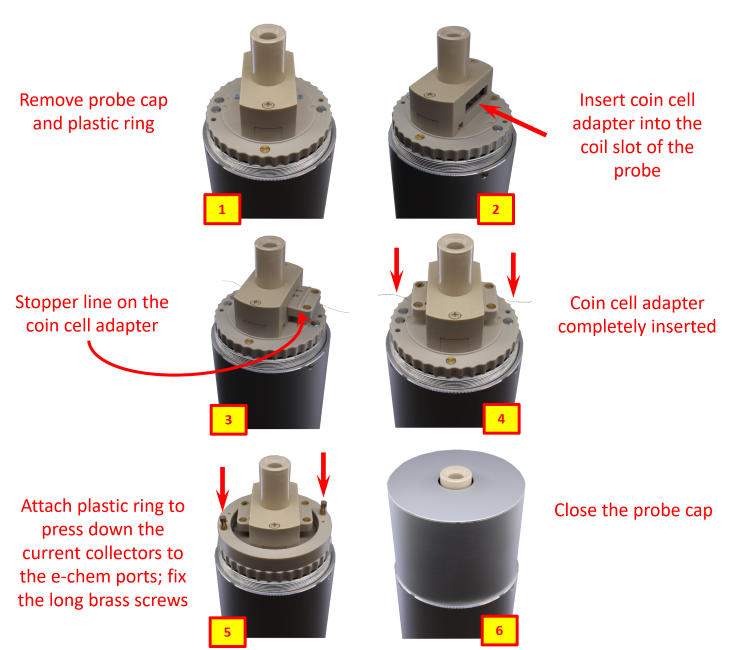

- Compatible with the ePROBE's Coin Cell Accessory Kit
- Cycling with up to at least 2 A current
- Suitable for all electrochemical cyclers

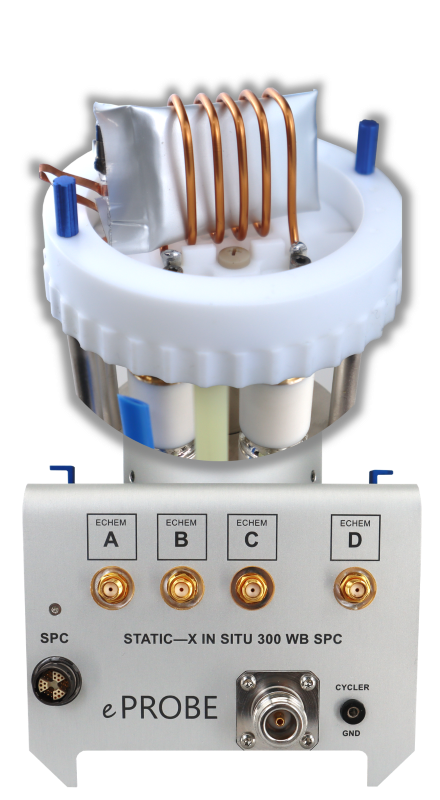

STATIC—X POUCH CELL IN SITU NMR WB PROBES
Single-channel static in situ/operando solid-state NMR probe spezialized for the analysis pouch cells
- Wide-bore
- Fields: 200 to 400 MHz (other fields to be discussed)
- X-channel: 13C to 31P (6Li and other nuclei to be discussed)
- Automatic tune/match integrated
- Suitable for all NMR systems
- Option to be discussed: two-channel version with fixed frequencies, e.g. 1H and 7Li
- Option: automatic tune/match for two-channel version via eATM Robot
Electrochemistry/battery features and options
- Coil and probe dimensions adapted to the size of your pouch cells
- Three electrochemistry ports (option: four ports)
- Cycling with up to at least 2 A current
- Suitable for all electrochemical cyclers

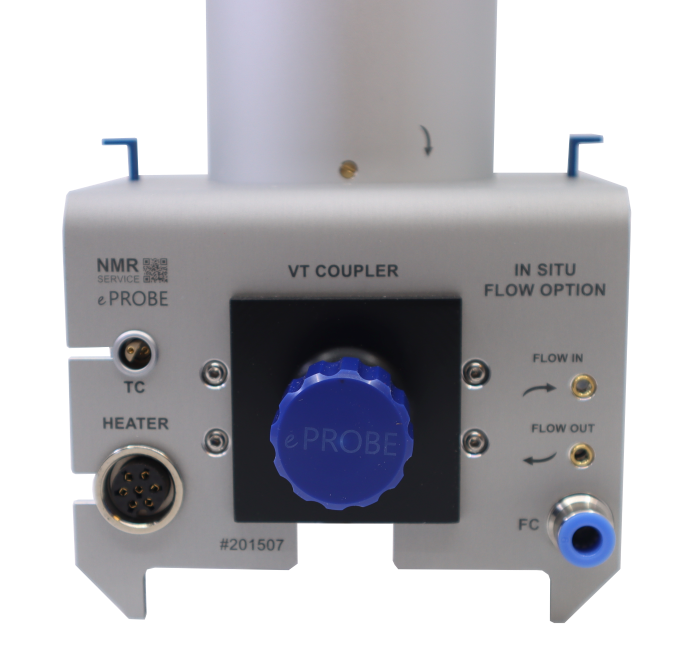

Temperature control options
- Customized dewar to fit your pouch cells
- Modular exhaust gas chimney for optimized gas flow
- Up to 3 thermocouples for precise operando VT control
Watch this space for your customised solution - contact us.
