In situ NMR cells

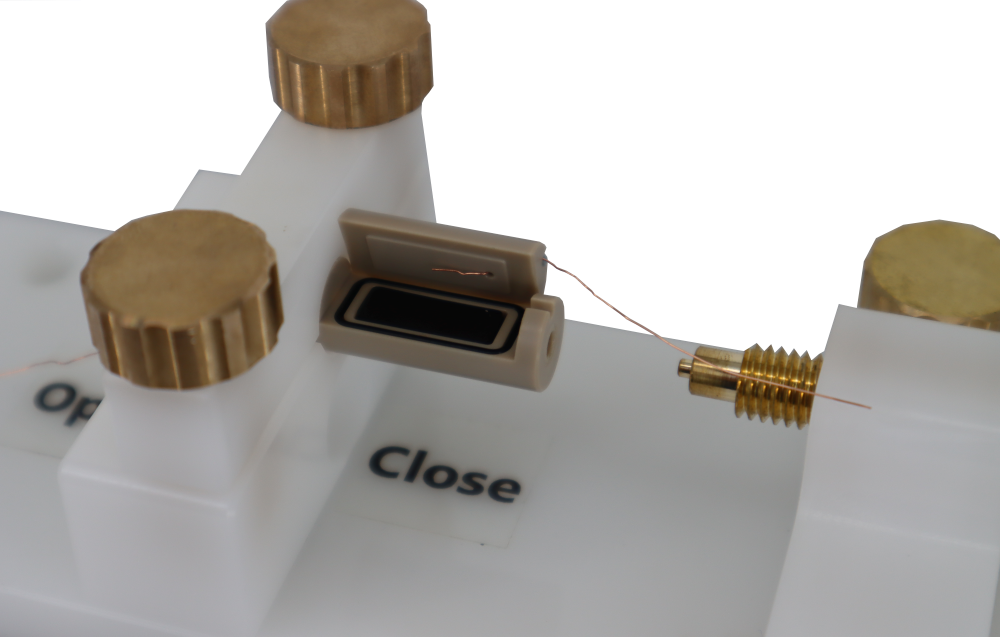

- Modular cylindrical plastic casing to assemble electrochemical cells
- Comprising three PEEK parts (top, bottom, and capsule)
- Encapsulated to hold cell parts in place and produce pressure

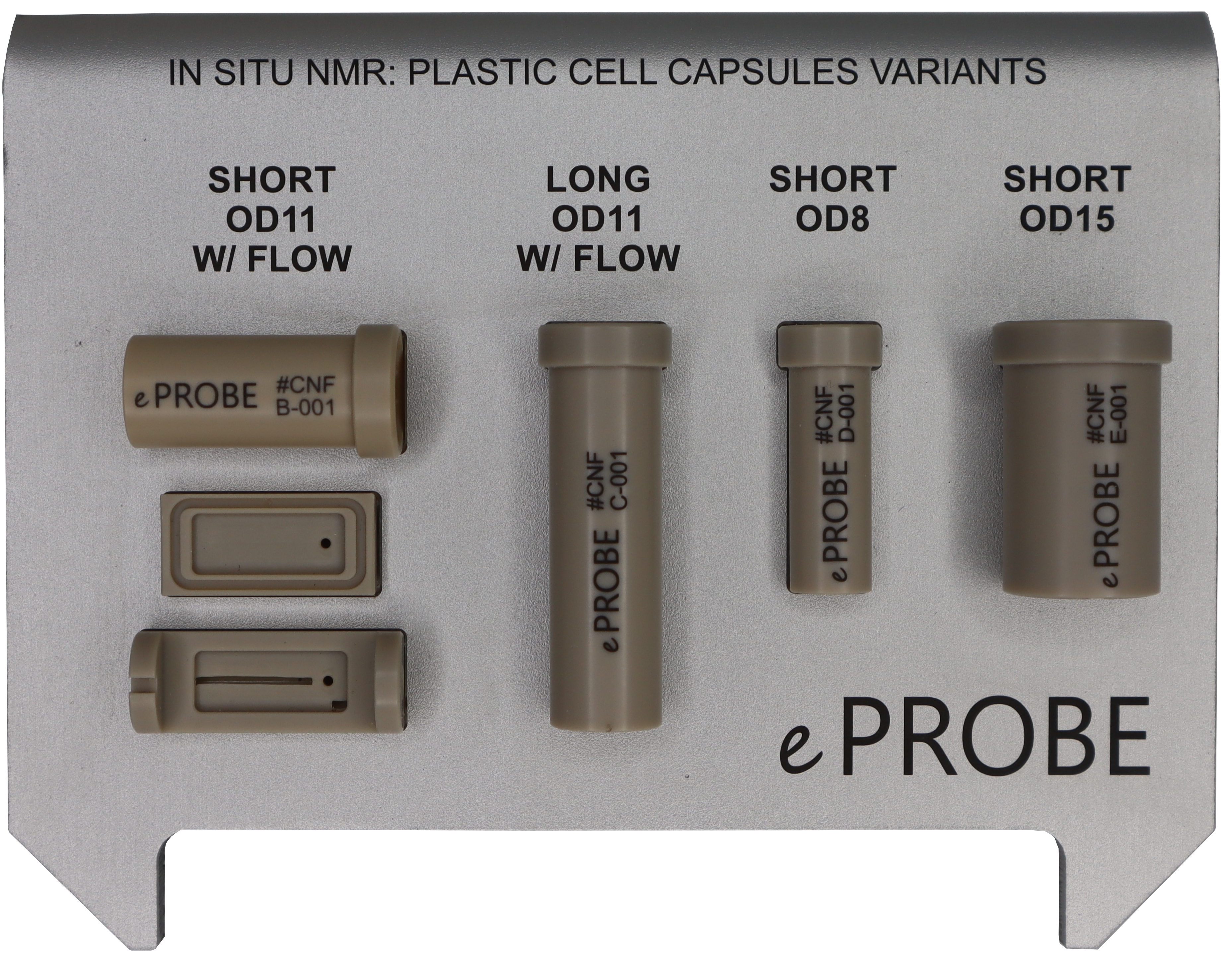

PCC-SHORT-OD8
- Plastic cell capsule short outer diameter 8 mm no flow-option
- L 26 mm, OD 8 mm, cavity 15×4 mm (depth 1 mm)
- Suited for solenoid coil ID 8 mm
PCC-SHORT-OD11
- Plastic cell capsule short outer diameter 11 mm no flow-option
- L 26 mm, OD 11 mm, cavity 15×6 mm (depth 1 mm)
- Suited for solenoid coil ID 11 mm

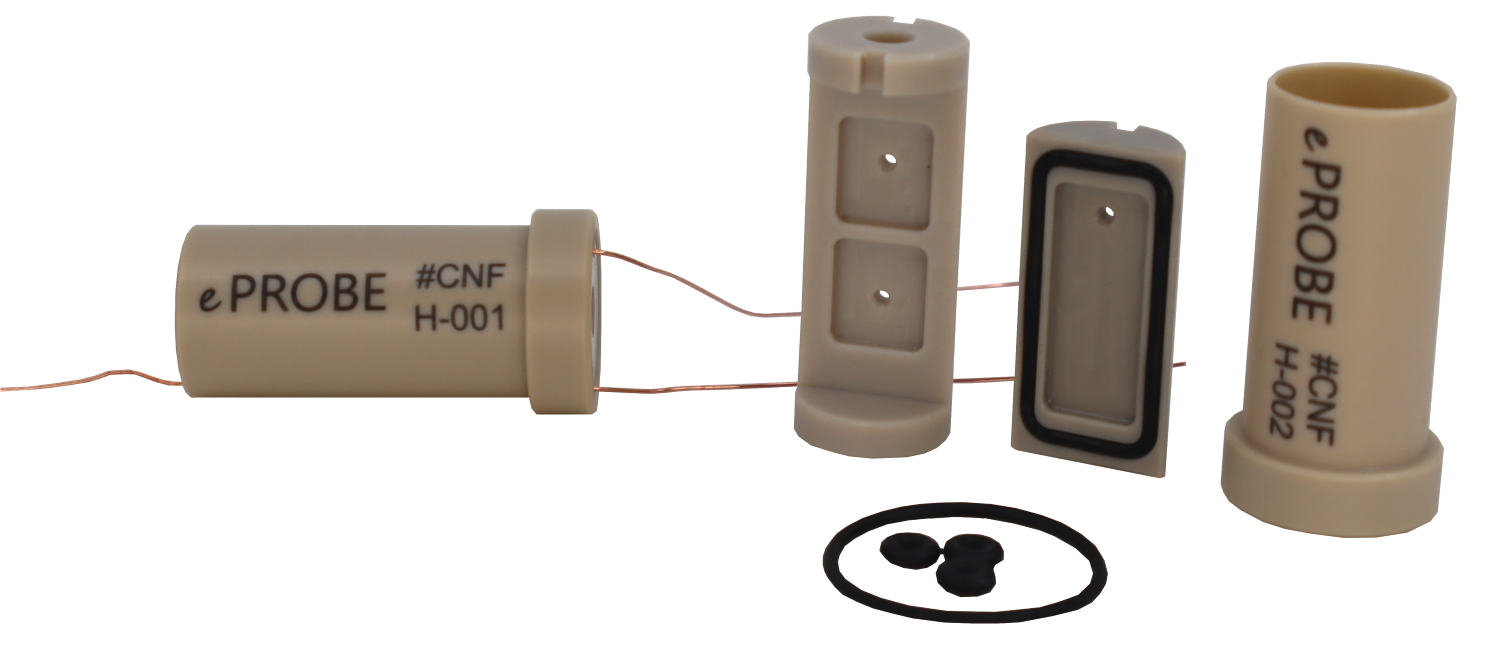

PCC-SHORT-OD11-WF
- Plastic cell capsule short outer diameter 11 mm with flow-option
- L 26 mm, OD 11 mm, cavity 15×6 mm (depth 1 mm)
- Suited for solenoid coil ID 11 mm
- Tubing in/outlet in bottom part
- Suited for tubing of OD 1.5 mm (e.g. ID 0.8)
PCC-LONG-OD11-WF
- Plastic cell capsule long outer diameter 11 mm with flow-option
- L 40 mm, OD 11 mm, cavity 27×6 mm (depth 1 mm)
- Suited for solenoid coil ID 11 mm
- Tubing in/outlet in bottom part
- Suited for tubing of OD 1.5 mm (e.g. ID 0.8)
PCC-SHORT-OD15
- Plastic cell capsule short outer diameter 15 mm
- L 26 mm, OD 15 mm, cavity 15×8 mm (depth 2 mm)
- Suited for solenoid coil ID 15 mm
High Temperature cells: New!

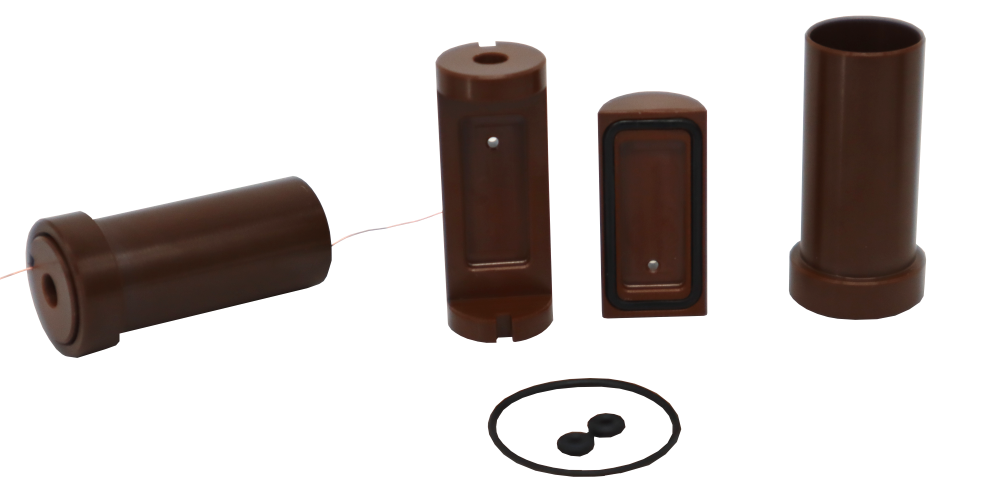

PCC-SHORT-OD11-SP1/ SSB-SHORT-OD11-SP1
- Rated for in situ NMR measurements up to 300 °C
- Manufactured from high-temperature-resistant Vespel® SP-1
- Supplied with high-temperature-resistant O-rings
- Two standard geometries:
--PCC-SHORT-OD11-SP1, for standard battery materials
--SSB-SHORT-OD11-SP1, recommended for solid-state battery materials - All other in situ cell models are also available in HT version upon request
- Fully compatible with the same tools and coils as PEEK alternatives
Low 1H background cell: New!

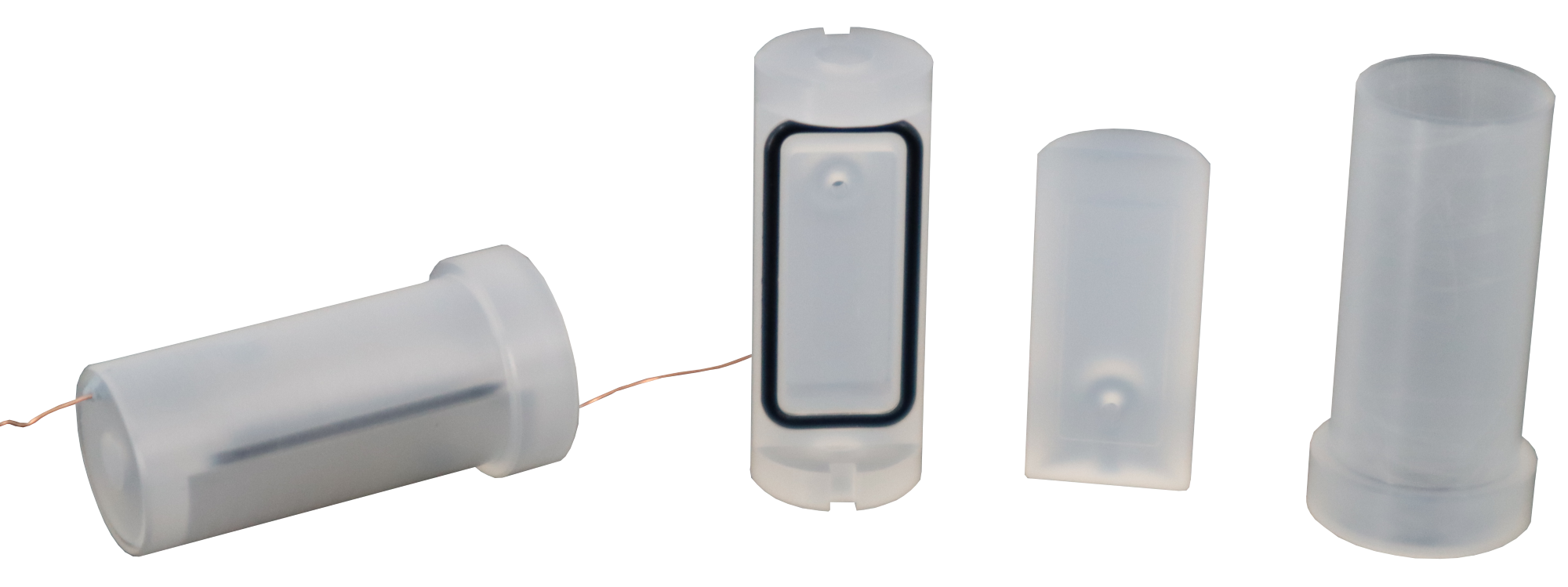

PCC-SHORT-OD11 1-CV Low-1H
- Made from a 1H-free material (Kel-F) for a minimized background during 1H NMR experiments
- Standard: PCC-SHORT-OD11 1-CV
-- 1 deep cavity in bottom part: 15×6 mm (depth 2 mm)
-- L 26 mm, OD 11 mm - All other in situ cell models are also available in Low-1H version upon request
- Fully compatible with the same tools and coils as PEEK alternatives
One-cavity cell: New!

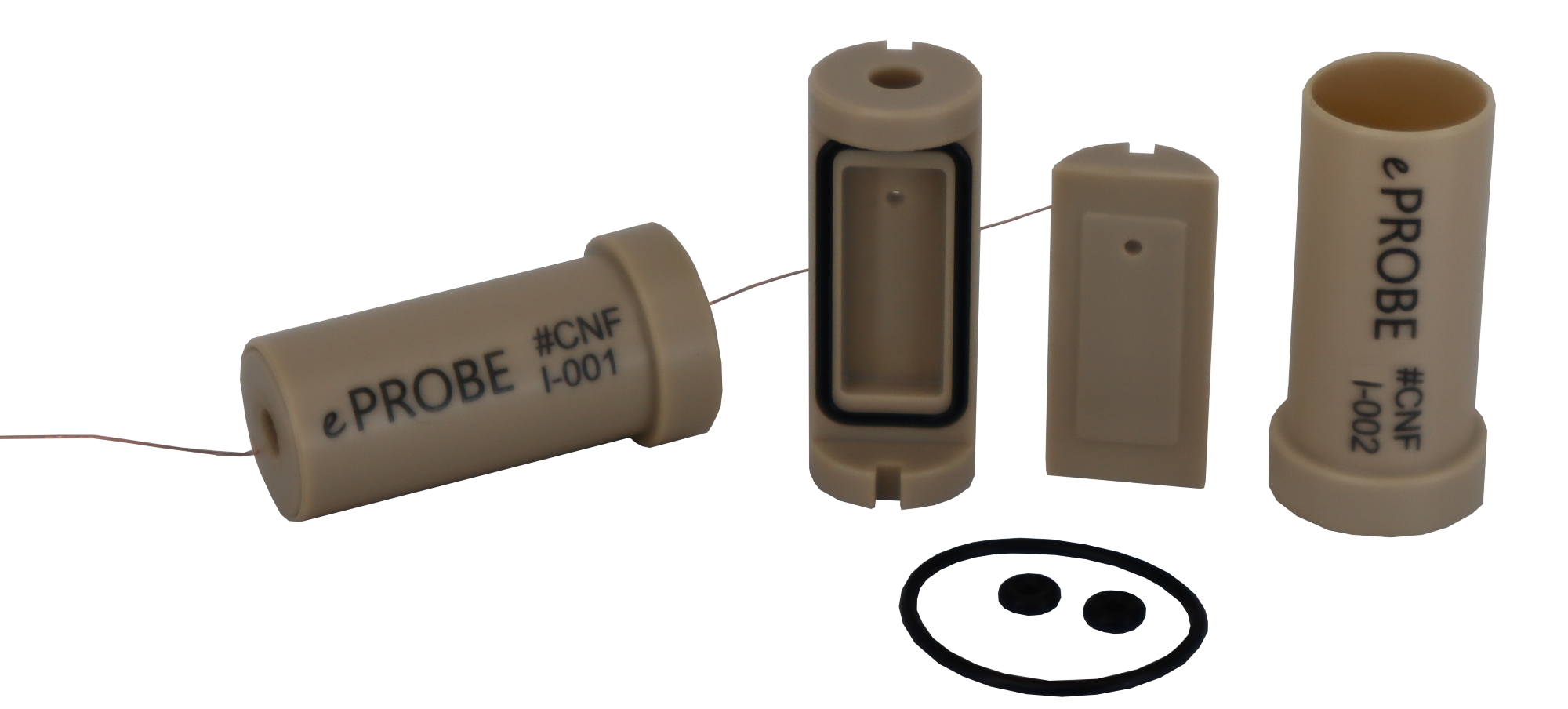

PCC-SHORT-OD11 1-CV
- Deep cavity in bottom part only for easier alignment of electrodes
- Projection in top part to compress electrode stack in cavity

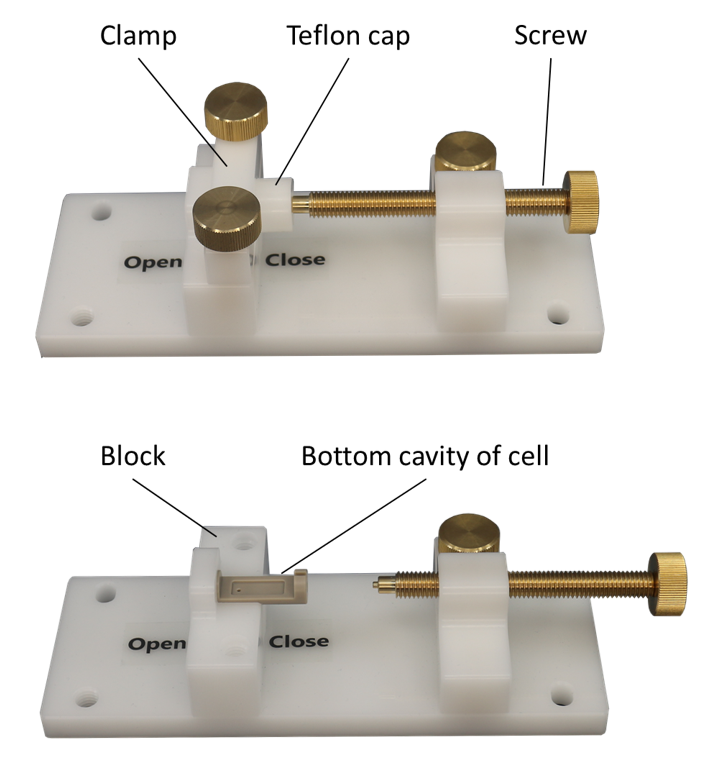

- Fully compatible with 11 mm assembly tool and coils
- 1 deep cavity in bottom part: 15×6 mm (depth 2 mm)
- L 26 mm, OD 11 mm (other sizes and flow option can be discussed)

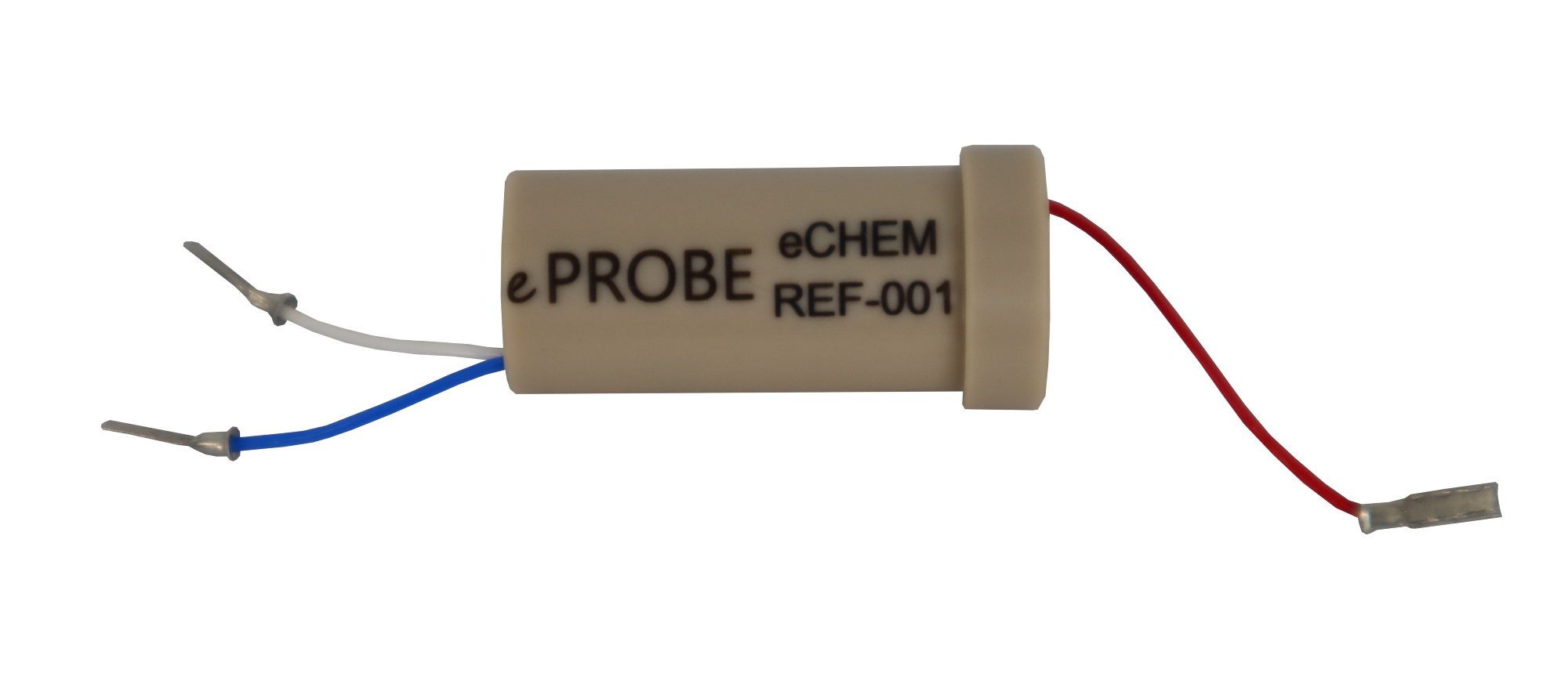

Three-electrode cell: New!
PCC-SHORT-OD11 3-EL
- Plastic cell capsule short outer diameter 11 mm no flow-option
- Allows 3-electrode battery cell analysis
- 1 cavity in top part: 15×6 mm (depth 1 mm)
- 2 cavities in bottom part: 7×6 mm (depth 1 mm)
- L 26 mm, OD 11 mm (other sizes can be discussed)
Solid state battery in situ NMR cells

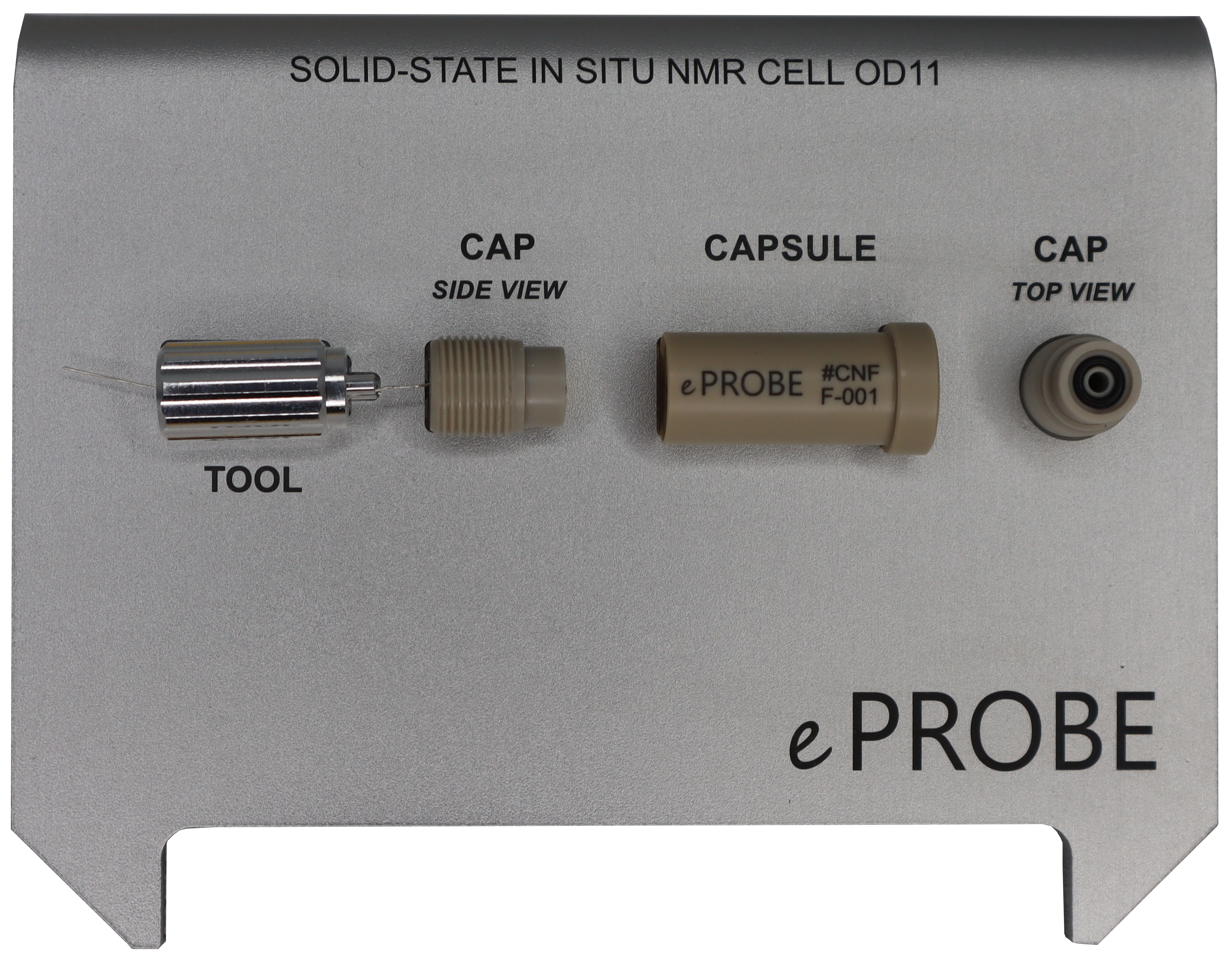

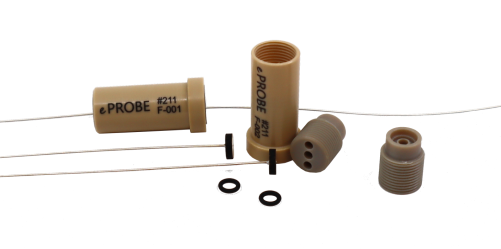

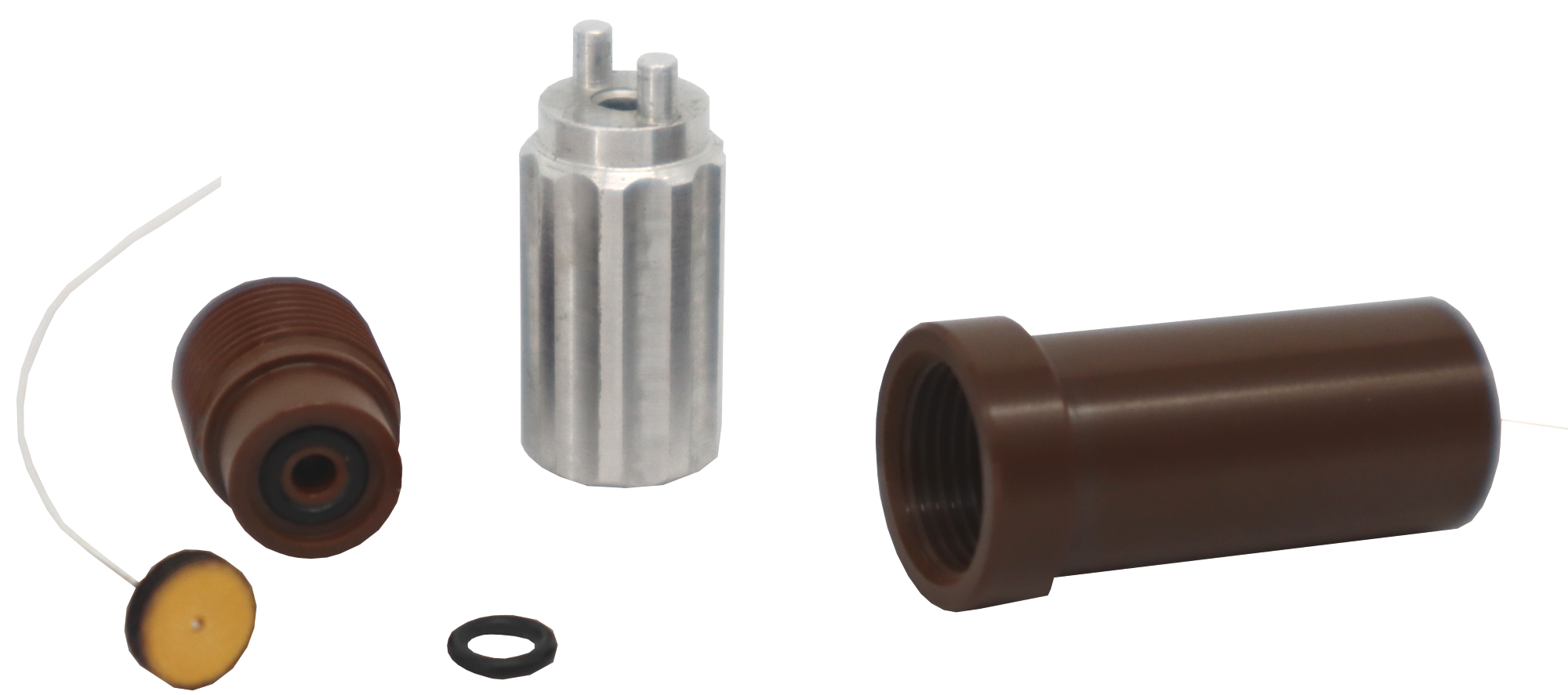

SSB-SHORT-OD11
- Modular cylindrical plastic casing to assemble solid-state batteries
- L 26 mm, OD 11 mm, materials space approx. 1 mm thickness
- Comprising three PEEK parts (capsule, two threads for electrodes)
- Current collector plates with attached wire and O-ring sealing
- Encapsulated to hold cell parts in place and produce pressure
- Suited for solenoid coil ID 11 mm
- Recommended for simultaneous EIS-NMR measurement because of the optimal electrical contact with the analyzed material.

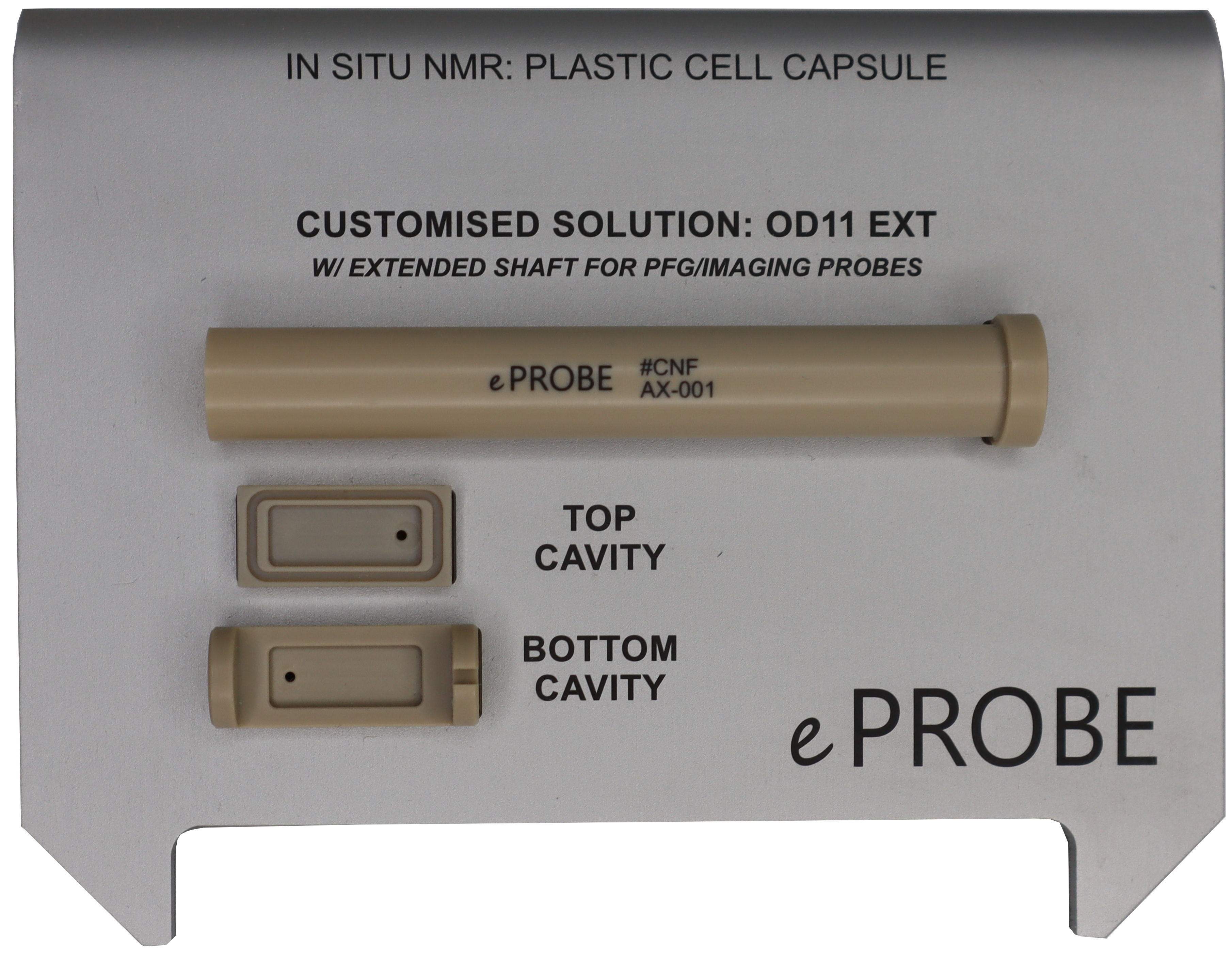

Watch this space for your customised solution - contact us.
