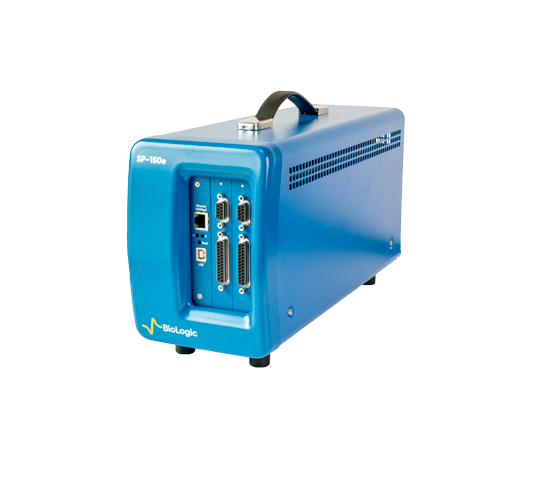

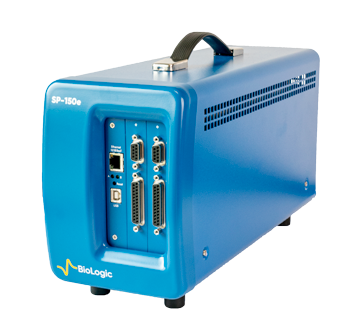

BioLogic SP-150e potentiostat

• The SP–150e is the only ampere capable electrochemical workstation to boast high-current capability (800 A with boosters), three EIS quality indicators (THD, NSD, NSR) for Electrochemical Impedance Spectroscopy validation and Ethernet compatibility for improved group-working.
• Voltage
  -- Control voltage: Different measurement ranges available between [-20; to +20] V (customizable); up to 60 V with FlexP0060/FlexP0160
  -- Voltage resolution: 5 µV to 305 µV
  -- Compliance: ±10 V adjustable between [-20; to +20] V (standard)
  -- Accuracy: < 0.1 % Full Scale Range (20 mV)
• Current
  -- Current ranges: 1 A to 10 µA (6 ranges). Automatic current range available.
  -- Maximum current: ±1 A; up to 800 A with four FlexP0012
  -- Current resolution: 0.004 % of the range (min 760 pA)
  -- Accuracy: < 0.1 % Full Scale Range (min 20 nA)
• Advanced
  -- Up to 2 channels
  -- Connection 2,3,4,5 terminal lead
  -- Best acquisition time: 20 µs with EC-Lab® developer package
  -- Stability control mode (7 bandwidths)
  -- Control software: EC-Lab® (incl. free updates) and EC-Lab® developer package
  -- Ethernet or USB 2.0 connection to PC/laptop



Option: Electrochemical Impedance Spectroscopy (EIS)

• Frequency range: 1 MHz down to 10 µHz
• EIS quality indicators

Options for SP-50e and SP-150e

• Additional cell cable 3 m
• Additional cell cable 5 m
• Additional cell cable 10 m

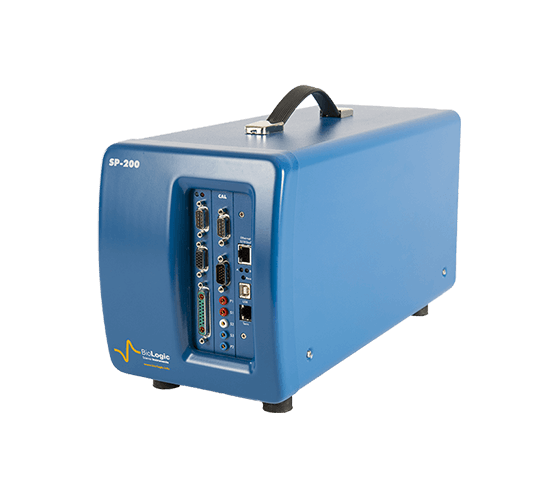

BioLogic SP-200 potentiostat (with EIS)

• Single channel – transportable potentiostat
• The perfect electrochemical workstation for corrosion with the 76 fA accuracy ultra-low current option
• Voltage
  -- Compliance: ±12 V
  -- Control voltage: Customizable ranges from ±10 V down to ±30 mV; Up to [0; 48] V with HCV-3048
  -- Voltage resolution: From 1 µV on 60 mV range
  -- Accuracy < ± 1 mV ± 0.03 % of setting
• Current
  -- Current ranges: 1 A to 10 nA (standard); down to 1 pA (Ultra Low Current – option!)
  -- Maximum current: ±500 mA (standard); up to 120 A with four HCV-3048
  -- Current resolution: 0.004 % of the range. 760 fA (standard); down to 76 aA (Ultra Low Current – option!)
  -- Accuracy < ± 0.1 % of range ± 0.03 % of setting
  -- Note, ultra low current is an option (additional module) and not included with this configuration.
• Electrochemical Impedance Spectroscopy (EIS)
  -- Frequency range:
  -- 11 MHz (3%, 3°) down to 10 µHz; 3 MHz (1%, 1°)
  -- EIS quality indicators
• Advanced
  -- Connection 2,3,4,5 terminal lead
  -- Best acquisition time: 12 µs with EC-Lab Express; 1 µs with ARG option
  -- Floating mode – relevant if your cell is grounded via the in situ NMR probe/experiment
  -- Analog filtering
  -- Calibration board included
  -- Full stability control mode (9 bandwidths)
